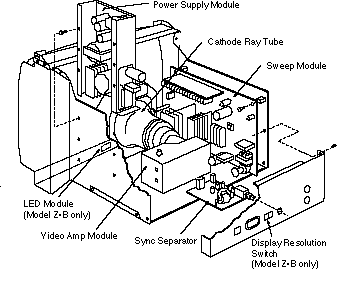

19" Two Page Displays Model Z
| Part # | Part Name | Price |
|---|---|---|---|
| 815-0001 | BEZEL,MONITOR,TPD | $64 | |
| 815-0010 | HOUSING,REAR,TPD-P | $47 | |
| 815-0011 | BEZEL,TPD-P | $33 | |
| 815-0013 | CONTROL HOUSING | $20 | |
| 915-0026 | VERTICAL SWEEP BOARD | $247 | |
| 915-0027 | TPD ECL VIDEO BOARD | $311 | |
| 915-0029 | TPD HIGH VOLT POWER SUPPLY | $369 | |
| 915-0058 | POWER SUPPLY, TPD-P,Z | $268 | |
| 915-0059 | VIDEO AMP BOARD,TPD-P | $215 | |
| 915-0061 | HORZ/VERT PNL,TPD-P,D | $519 | |
| 915-0062 | CRT,PHILLIPS,TPD-P,D,FB | $271 | |
| 915-0063 | POWER SUPPLY PANEL | $329 | |
| 915-0064 | VIDEO/ANALOG PANEL | $180 | |
| 915-0065 | SWITCH, ON/OFF, TDP-P,D,FB | $10 | |
| 915-0068 | CONTRAST CONTROL ASSEMBLY | $33 | |
| 915-0078 | BRIGHTNESS CONTROL ASSEMBLY | $33 | |
| 915-0081 | PWR SUPPLY,H VOLT,4A13,D,TPD-P | $369 | |
| 915-0082 | LOW VOLTAGE POWER SUPPLY | $371 | |
| 915-0083 | VERTICAL BOARD | $247 | |
| 915-0084 | ADAPTOR CABLR,AMP TO MOLEX,M | $20 | |
| 915-0085 | ADAPTOR CABLE,AMP TO MOLEX,F | $20 | |
| 915-0088 | HORIZONTAL/VERTICAL BOARD | $580 | |
| 915-0089 | POWER SUPPLY 19/21 MONO | $307 | |
| 915-0090 | A/B SWITCH MODULE | $33 | |
| 915-0091 | MAIN BOARD | $519 | |
| 915-0092 | POWER SUPPLY 19/21 MONO | $307 | |
| 915-0093 | LED MODULE | $33 | |
| 915-0094 | HORIZONTAL/VERTICAL BOARD | $452 | |
| 915-0095 | LED MODULE | $33 | |
| 915-0126 | UNIVERSAL POWER SUPPLY | $180 | |
| 915-0127 | VIDEO MODULE | $103 | |
| 915-0128 | REAR PILOT CTL PCB,19RAM6 | $33 | |
| 915-0129 | SYNC SEPARATOR BRD 19RAM6 | $33 | |
| 915-0131 | LED MODULE,DS31B,590OHM | $33 | |
| 915-0132 | CONTRAST CONTROL ASSEMBLY | $33 | |
| 915-0133 | BRIGHTNESS CONTROL ASSEMBLY | $33 | |
| 915-0228-01 | HORIZONTAL/VERTICAL PANEL | $457 | |
| 915-0275-01 | CRT TPD 19 PHILLIPS | $233 | |
| 915-0282-01 | YOKE TPD/19,TOTAKU | $113 |
